This small and handy PCB allows you to connect devices in parallel - no matter if they are using PH, XH, or a combination. Even right-angle connectors are supported.
Note that the maximum current is 2A total.
40x40x28mm fan for use in the Nevermore Mini. Very powerful fan which can be controlled via the PWM pin down to sub-10%.
Pin Mapping:
Red
+
Black
-
Yellow
Tachometer
Blue
PWM control
PWM control follows the standard Intel Spec (5V pullup). If no signal is given via the PWM input, the fan will run at full speed.
Technical data:
Operational Voltage (nominal)
12V
Rotational Speed
13000 RPM
Air Flow
0.58 m³/min (20.5cfm, 34.8m³/h)
Static Pressure
0.86 in H2O
Noise Level
44.5dB
Current
400mA
The IWISS IWS-2820M is one of the recommended tools to crimp JST XH, PH, MicroFit 3.0 and many other common connectors used in your Voron build.
Suggested crimping technique:
Crimp strands
Slightly pull on the wire to ensure proper crimp
Crimp insulation
Some common die sizes:
Type
Strand
Insulation
MicroFit 3.0 Crimps 24-20AWG
1.6mm
1.9mm
JST XH
1.6mm
1.6mm
JST PH
1.3mm
1.6mm

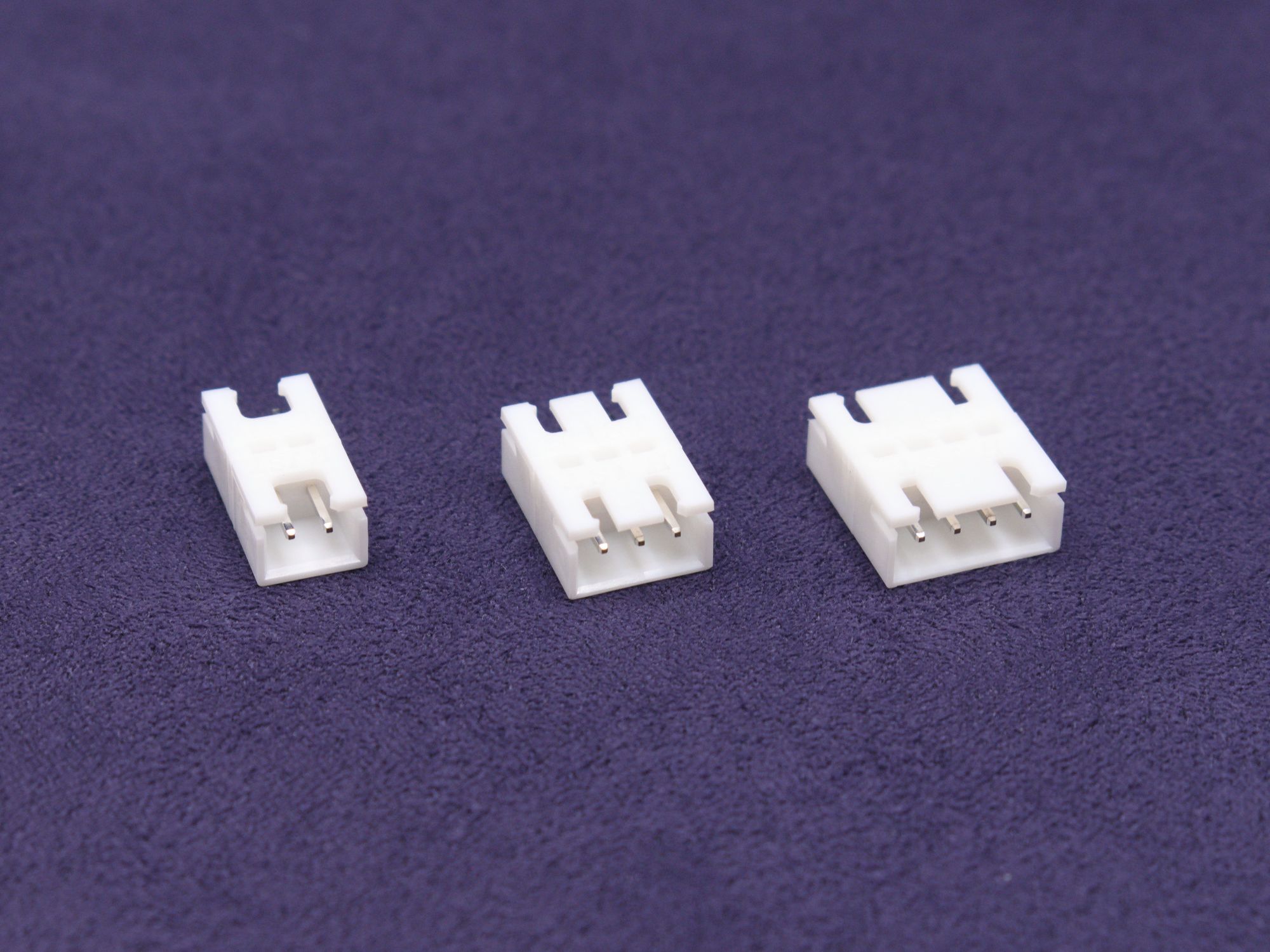

To extend JST XH connections. JST XH is a 2.5mm pitch connector series, used on most mainboards and the EBB36 / SHT36 toolheads. JST officially does not make these extenders, but we were able to source them from 3rd party manufacturers
Contents:
10x 2 pin housing
10x 3 pin housing
10x 4 pin housing
100 crimp contacts
JST PH is a 2.0mm pitch connector series, used on boards like the EBB36 (for the endstops), SB2209 RP2040 and Mellow SB2040 series. JST officially does not make these extenders, but we were able to source them from 3rd party manufacturers
To extend JST PH connections
Contents:
10x 2 pin housing
10x 3 pin housing
10x 4 pin housing
100 crimp contacts
Replacement SB0000 PCB. Comes without any crimp contacts or connector housings. If you need some, please let us know (order comment) and we can throw some in for free (be reasonable, and tell us what you need exactly).
Important: Please use plastic washers between the screw and the PCB, otherwise you can easily damage the traces on the PCB. A printed washer works fine.
Orion OD4010-24HB01A with tachometer output, suitable as StealthBurner Hotend Fan
Comes with an 1N4148 diode and instructions for the tachometer open collector output.
Every fan is padded with some bubble wrap for additional protection during shipping.
Technical data:
Operational Voltage (nominal)
24V
Rotational Speed
8000 RPM
Air Flow
0.263 m³/min (9.3cfm, 15.8m³/h)
Static Pressure
0.20 in H2O
Noise Level
33.4dB
Current
60mA
Nitehawk is a toolhead PCB with a RP2040 MCU, TMC2209, Accelerometer all integrated into one board. The form factor is based on HartK’s two piece stealthburner toolhead PCB but with some minor changes.
Greatly simplified wiring, a single wire runs through the drag chain or in an umbilical setup. No additional breakout cables needed.
Based on Klipper USB, no additional hardware or software setup compared to CAN.
Tachometer enabled fan ports (PCF and HEF), allowing for fan speed detection.
Integrated accelerometer for convenient input-shaping
More info is available on GitHub
