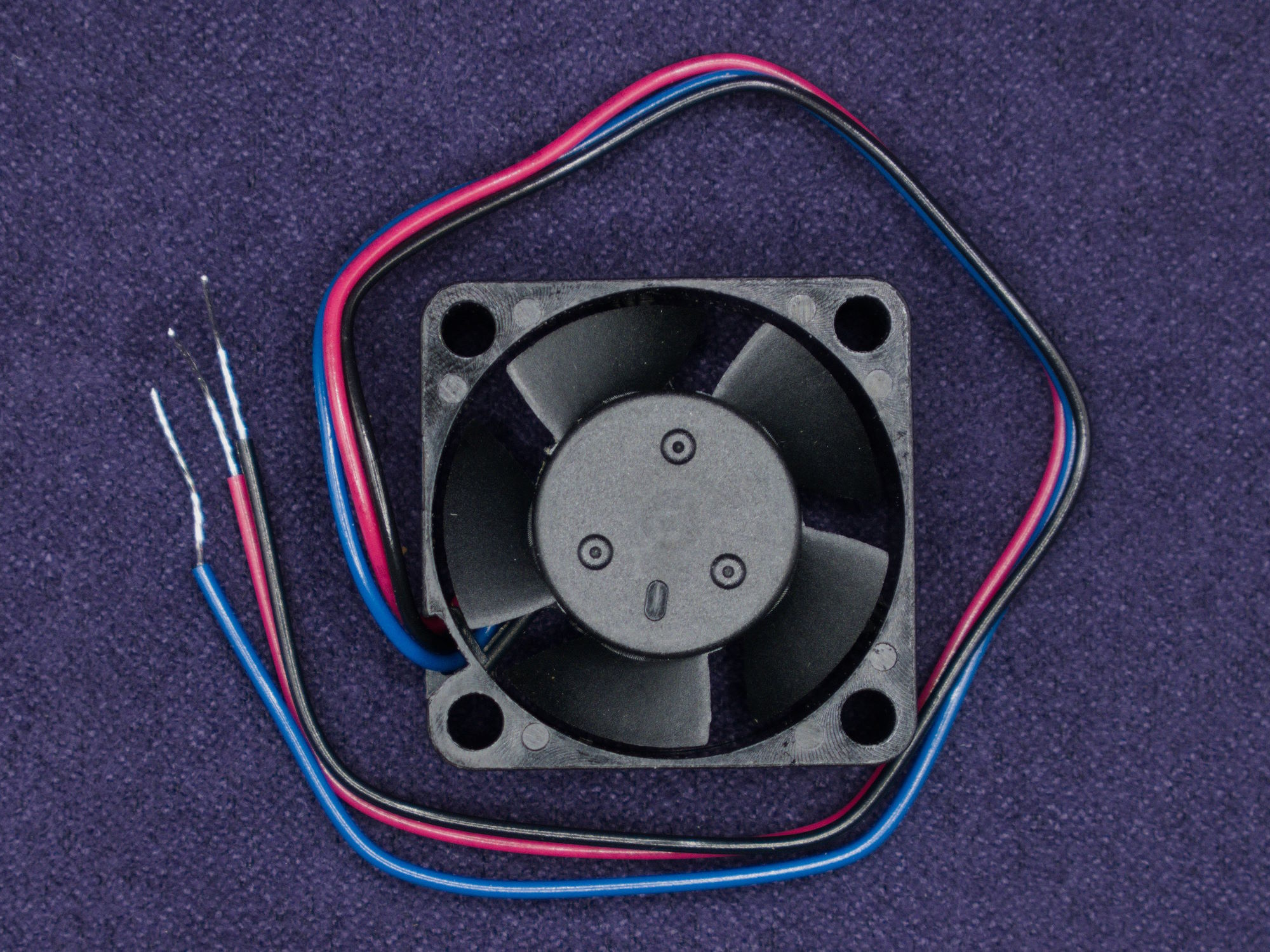

Delta ASB02505SHA-AY6B
Product number:
RT10134
Product information "Delta ASB02505SHA-AY6B"

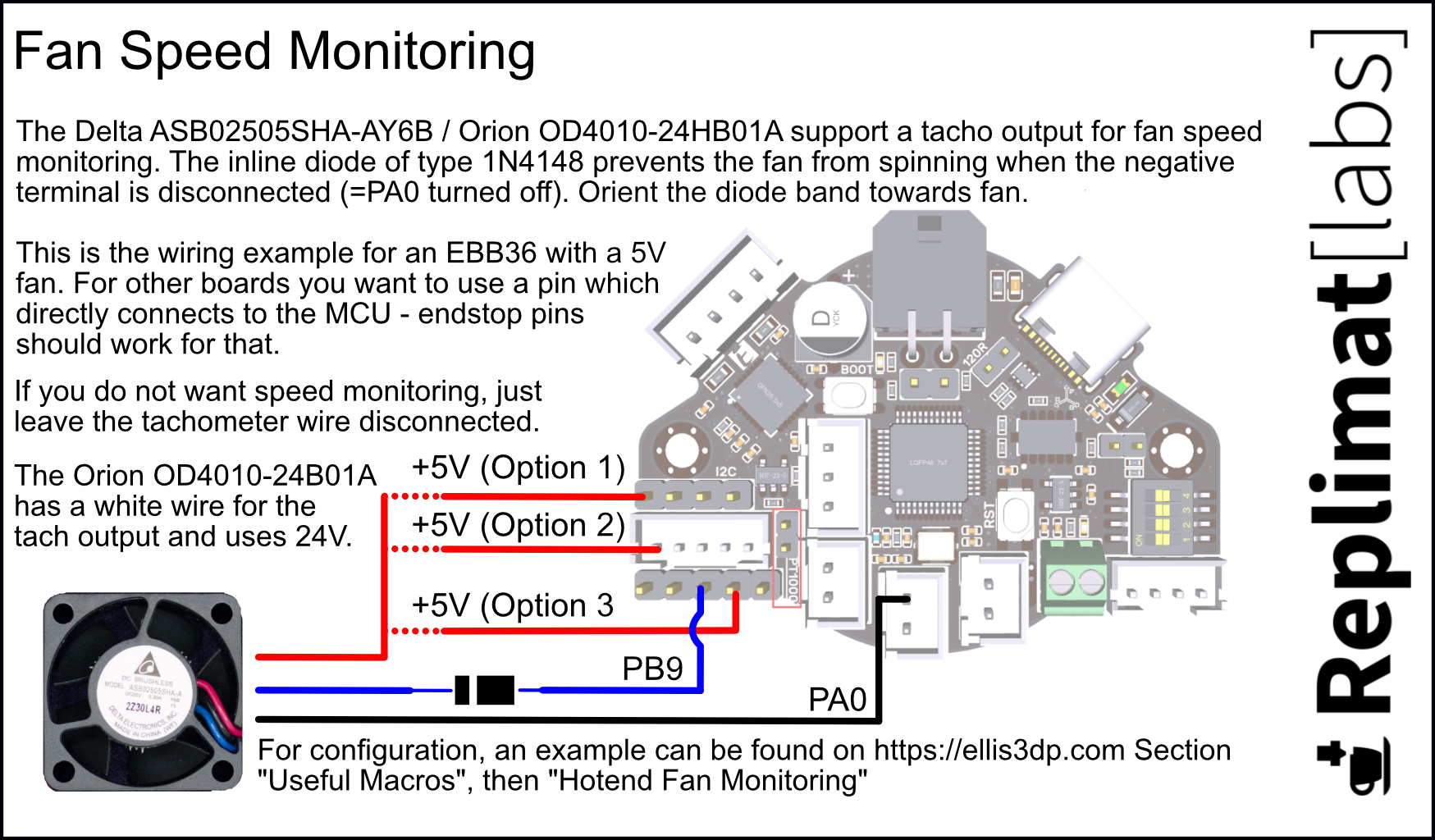

Relevant config options for Klipper:
tachometer_pin: # Set to the pin you like to use. Make sure it has either a hardware or software pullup tachometer_ppr: 2 tachometer_poll_interval: 0.0009
Technical data:
| Operational Voltage | 5V |
| Rated Current | 120mA |
| Rated Speed | 15000 RPM +-15% |
| Air Flow | 4.31cfm (7.32m³/h, 0.122m³/min) |
| Static Pressure | 0.32 inH2O (8.13 mmH2O) |
| Acoustic Noise | 31 dB(A) |
| 1N4148 diode is included. |
