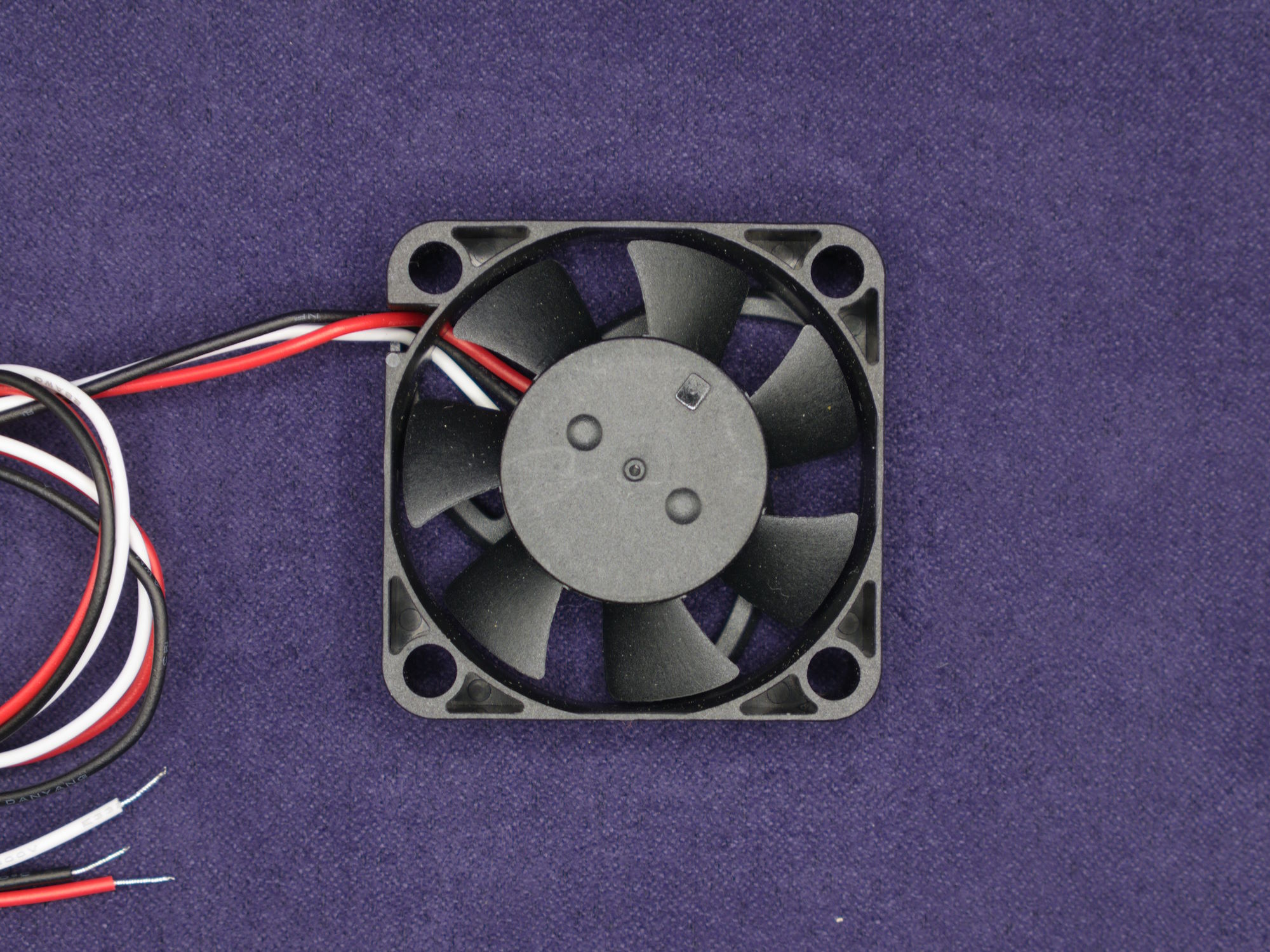

Orion OD4010-24HB01A
Product number:
RT10157
Product information "Orion OD4010-24HB01A"
Orion OD4010-24HB01A with tachometer output, suitable as StealthBurner Hotend Fan
Comes with an 1N4148 diode and instructions for the tachometer open collector output.
Every fan is padded with some bubble wrap for additional protection during shipping.
Technical data:
| Operational Voltage (nominal) | 24V |
| Rotational Speed | 8000 RPM |
| Air Flow | 0.263 m³/min (9.3cfm, 15.8m³/h) |
| Static Pressure | 0.20 in H2O |
| Noise Level | 33.4dB |
| Current | 60mA |
