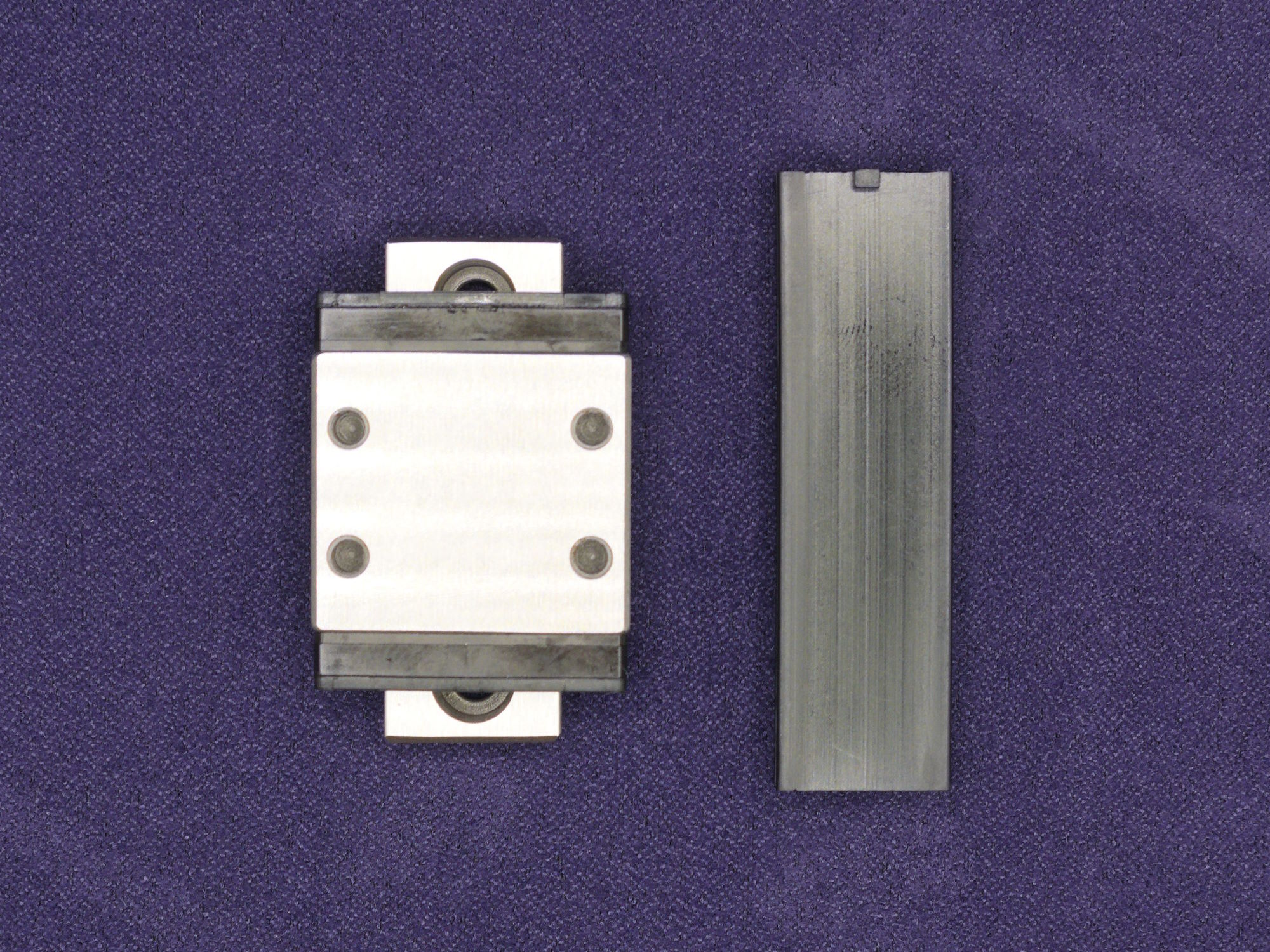

MGW7C 40mm medium preload rail+carriage
YOUMETONG MGW7C 40mm rail with medium preload carriage, 5mm edge-to-hole distance
Suitable for MetalBoop
The small variant of the OptoTap board, suitable for small printers and solutions like Boop or MetalBoop.
Comes with the Optek OPB666N sensor (rated to 100°C)

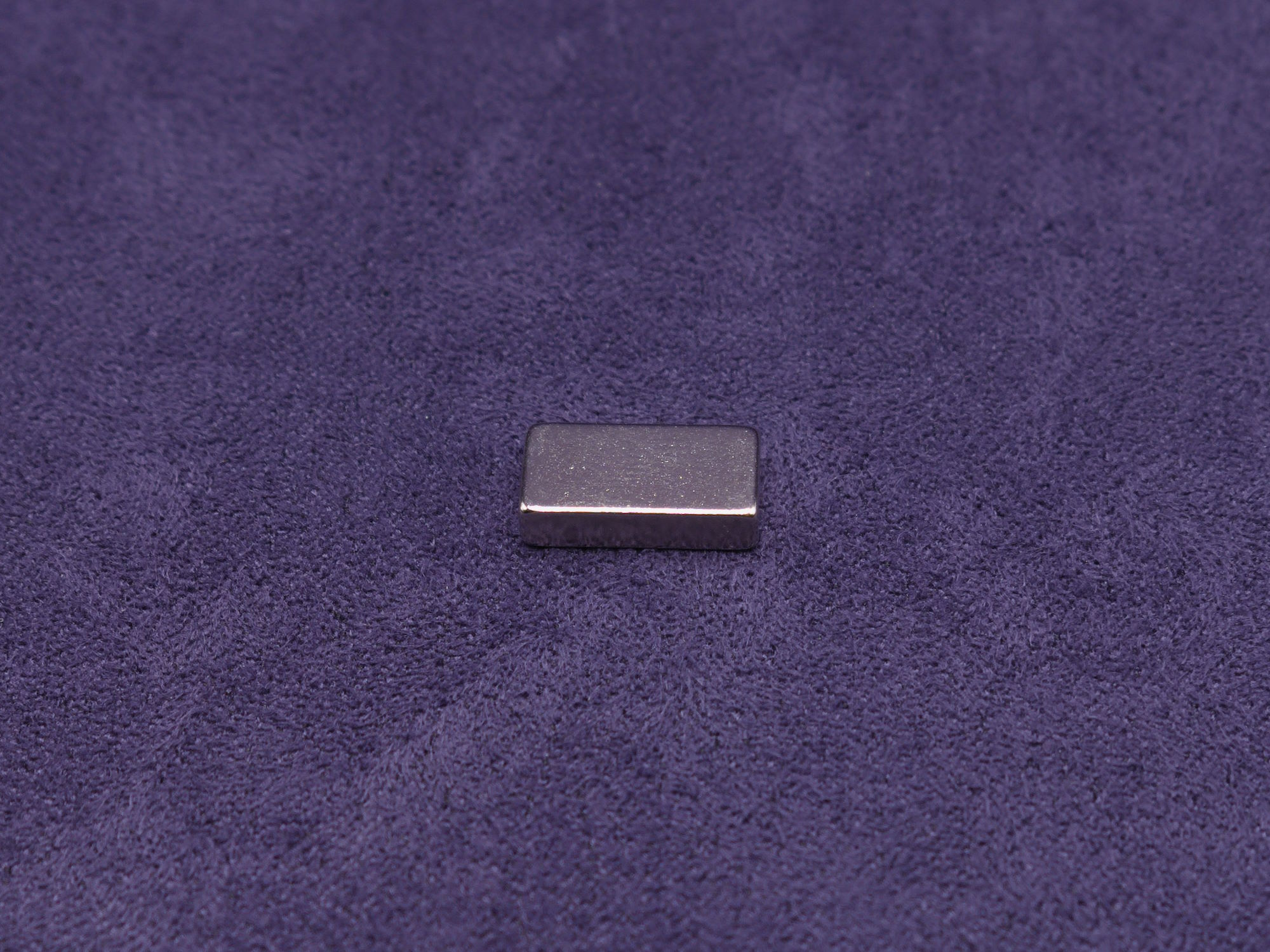

B842SH Magnet for MetalBoop.
Specifications as per K&J Magnetics:
Dimensions: 1/2" x 1/4" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.0678 oz. (1.92 g)
Pull Force, Case 1: 4.80 lbs
Pull Force, Case 2: 10.42 lbs
Surface Field: 3723 Gauss
Max Operating Temp: 302ºF (150ºC)
Brmax: 13,300 Gauss
BHmax: 42 MGOe
