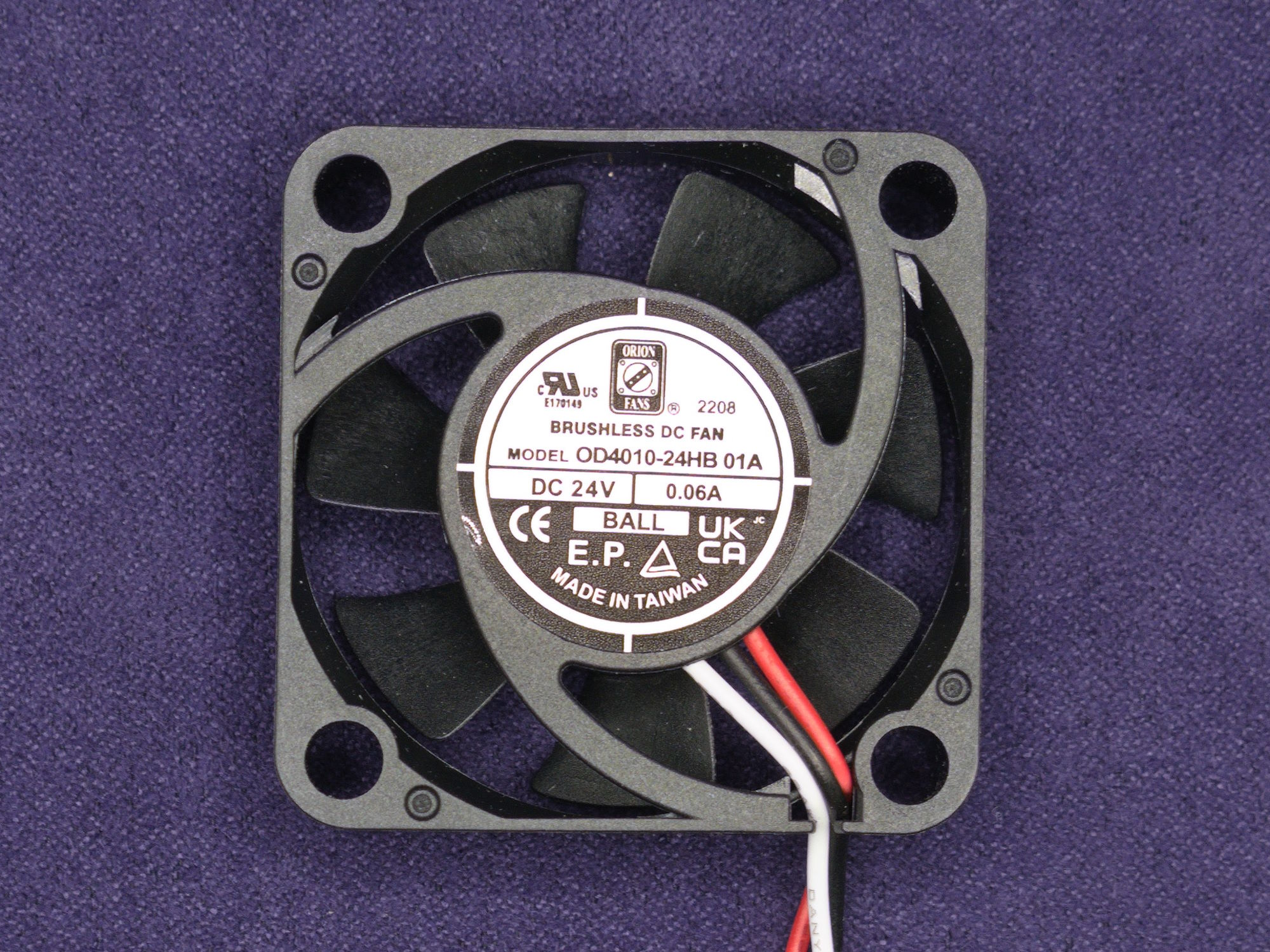

Orion OD4010-24HB01A with tachometer output, suitable as StealthBurner Hotend Fan
Comes with an 1N4148 diode and instructions for the tachometer open collector output.
Every fan is padded with some bubble wrap for additional protection during shipping.
Technical data:
Operational Voltage (nominal)
24V
Rotational Speed
8000 RPM
Air Flow
0.263 m³/min (9.3cfm, 15.8m³/h)
Static Pressure
0.20 in H2O
Noise Level
33.4dB
Current
60mA

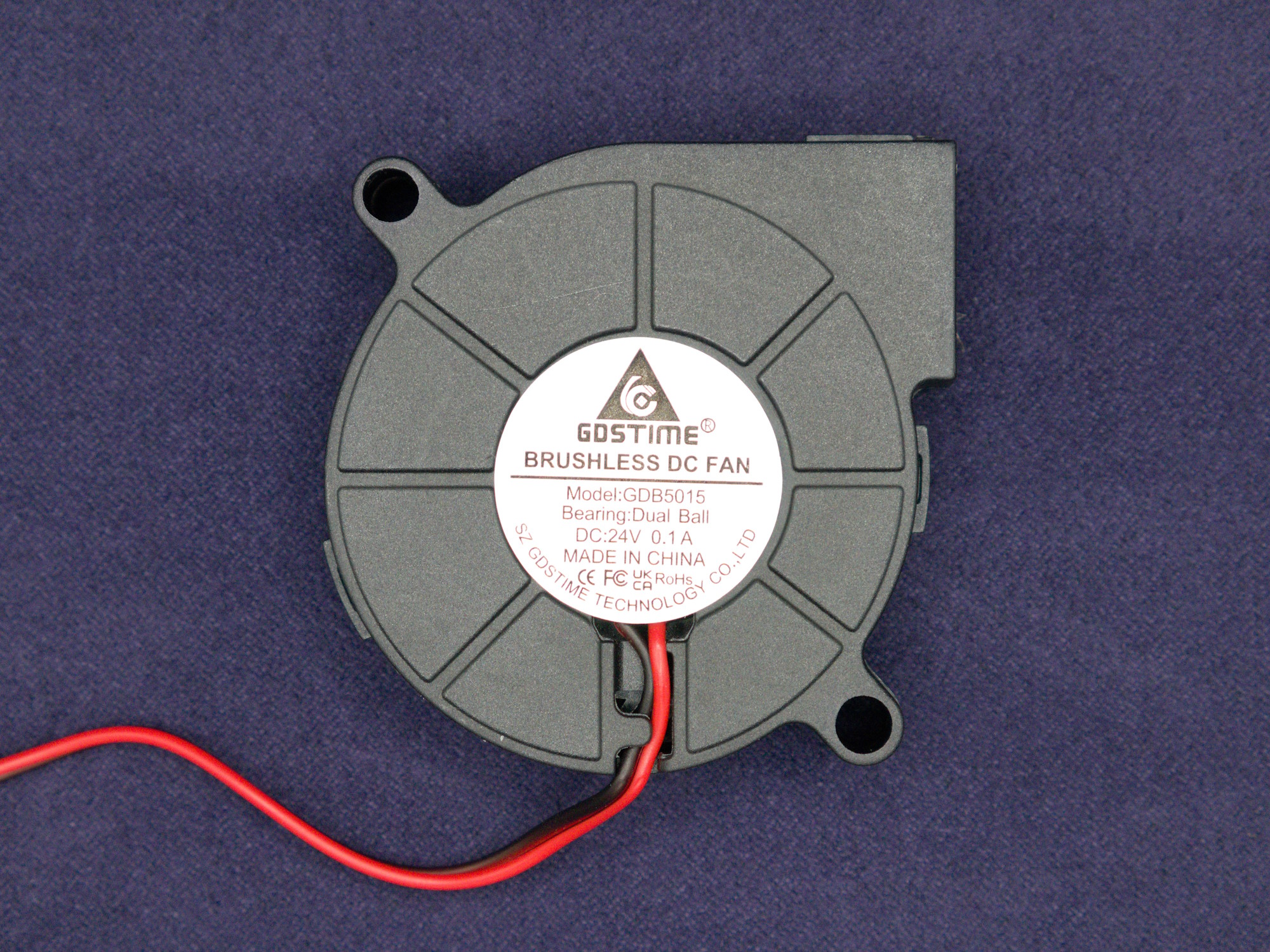

Gdstime 5015 Blower Fan, very well suited for the Stealthburner. Model Number GDB5015.
This is the high speed variant! It is louder and can potentially produce more vibrations than the regular 6000 RPM variant, but it has a higher airflow and can overcome a higher static pressure. Also the startup-time is considerably quicker.
Dual Ball Bearing, 24V, 140mA, 8500 RPM, 5.53 cfm, 48.6dB(a), 1.42 InH2O

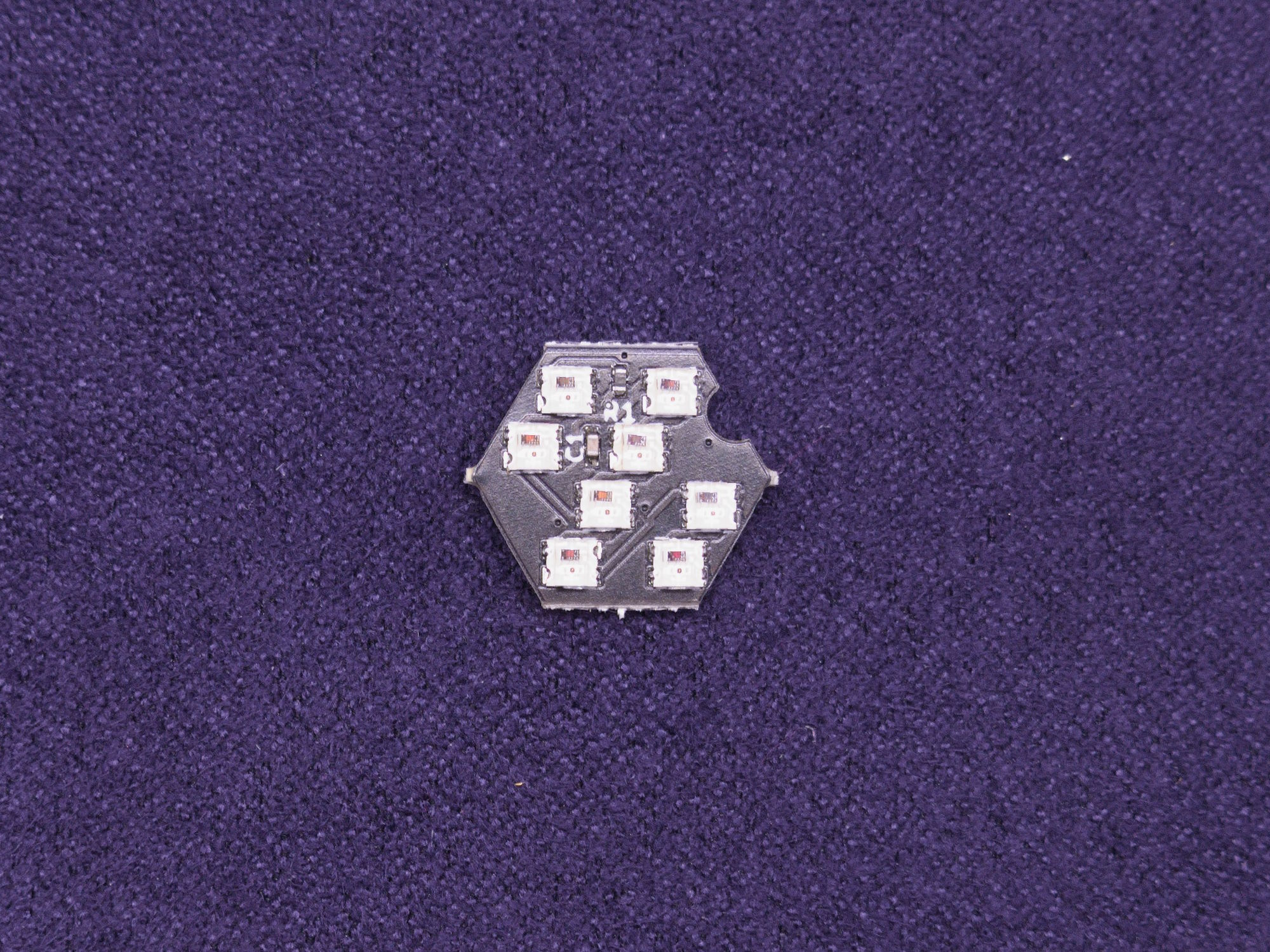

The popular Rainbow Barf Logo LED for StealthBurner and possibly many other fun projects! Designed by whoppingpochard and VinnyCordeiro.
For instructions and the required STLs visit the Rainbow Barf Github page.
Optionally comes with a 100 Ohm resistor for the data line to prevent signal reflections (see our Neopixel info page), let us know if you need one (free of charge).

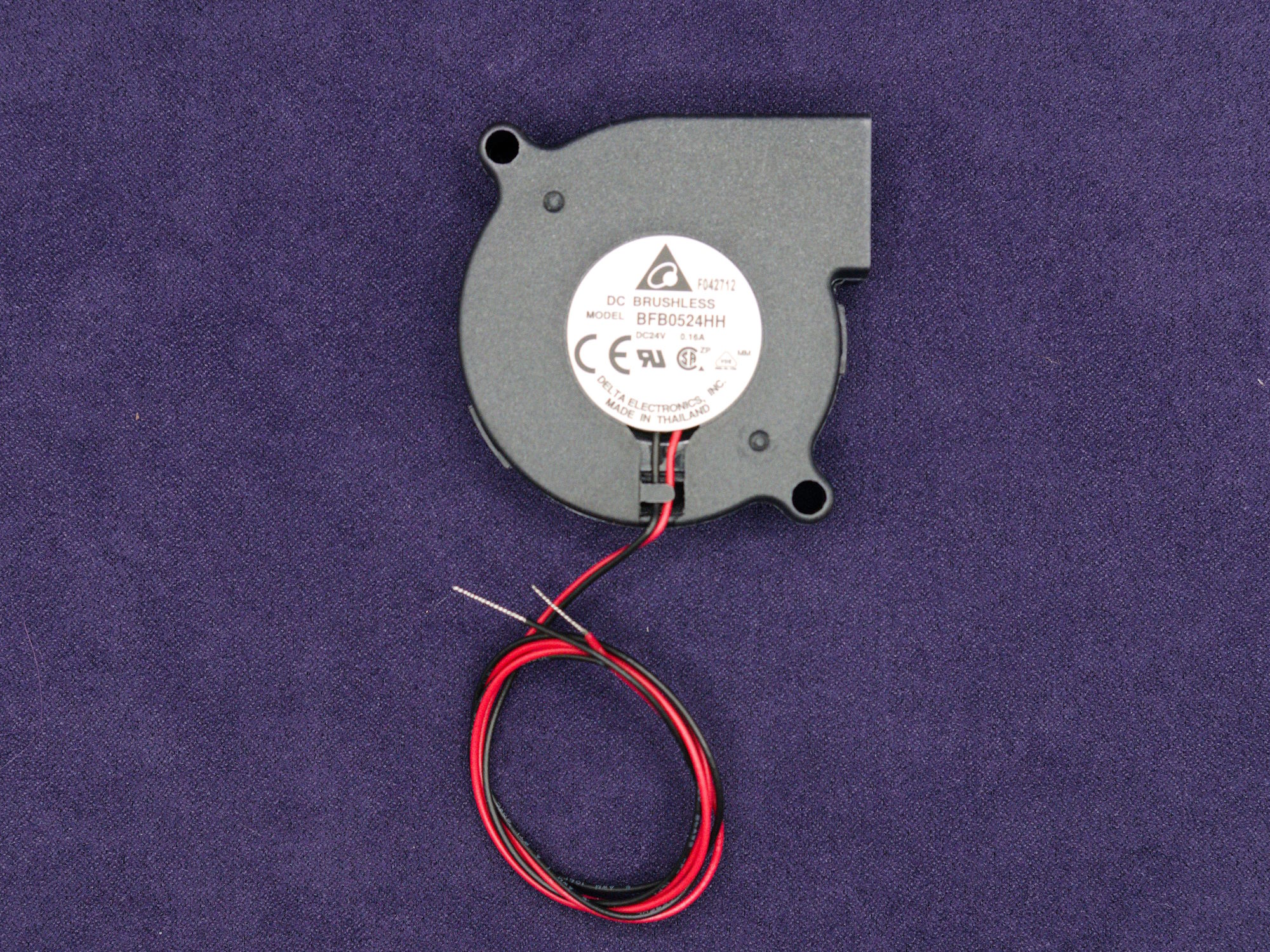

High performance fan by Delta, perfect for use in the Stealthburner.Operational Voltage (nominal)24VRotational Speed6500 RPMAir Flow0,13m³/min ( 4,59 cfm)Static Pressure22mmH2O (0,866 IN H2O)Noise45 dB(A)

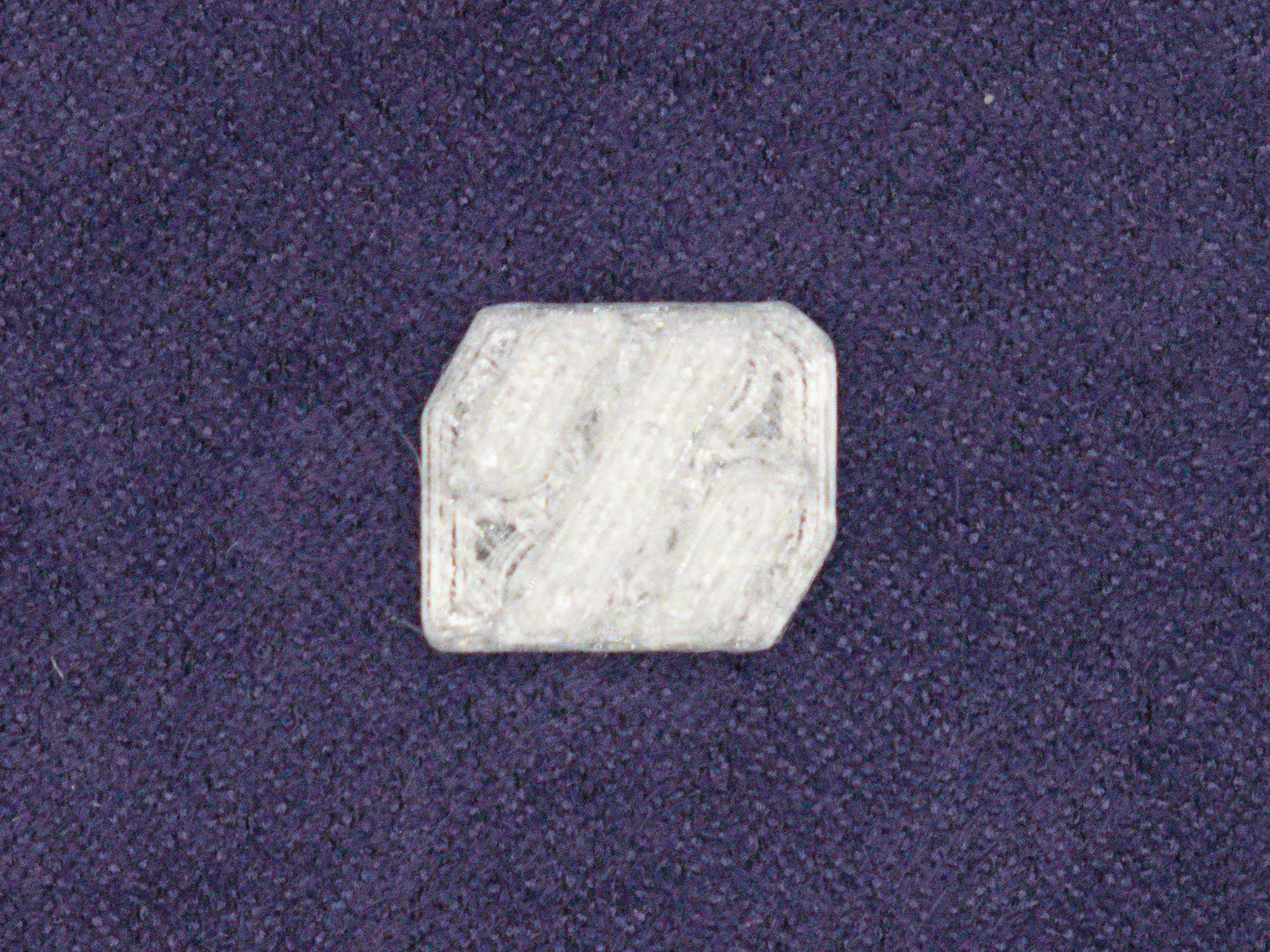

The Rainbow Barf Diffusor for use with the Stealthburner, printed in transparent PETG (which is the only exception when you should use PETG in your Voron ever!). We include 2 pieces because print defects are pretty hard to spot.Note that this part was printed on request (latest version as of 5th September 2022), and we made a few more. We did not test the part, so buy it on your own risk as we don't follow any updates to the printed part.

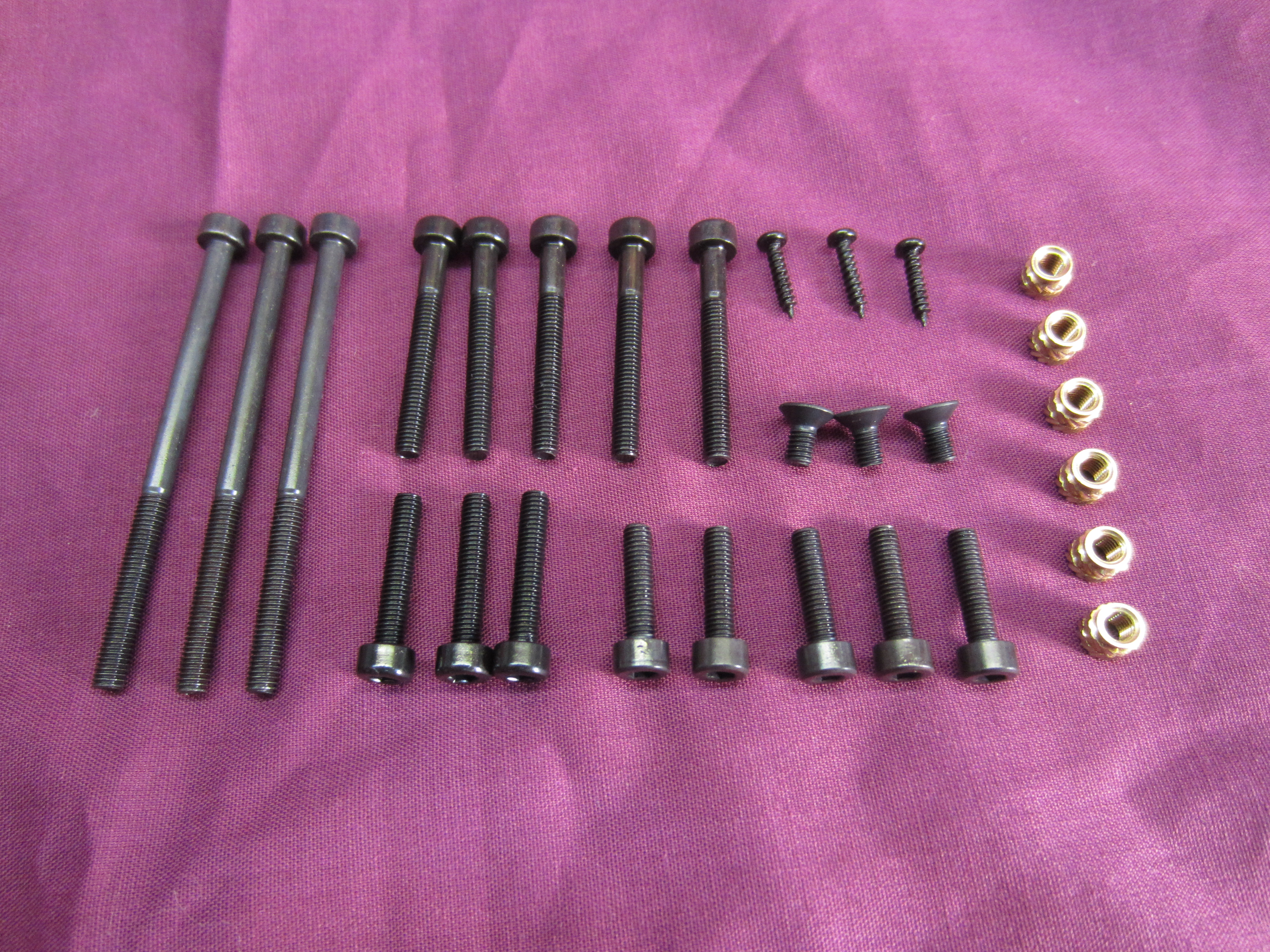

This screw kit contains all screws, nuts and heat stakes needed to build a Stealthburner according to the manual. You continue to use your existing Clockwork or Galileo extruder. Also included are the inserts and screws for the recently added ADXL mount.
Important: We include at least one spare screw or nut. You will have leftovers!
Note that the M3x6 FHCS screws are not V2A but nickel plated steel, but that part isn't visible anyways.
Contents:
M3x50 SHCS
3
M3x25 SHCS
5
M3x16 SHCS
3
M3x12 SHCS
5
M3x6 FHCS
3
M3 Brass heat stakes - M3x5x4
6
Self-tapping Screw 2x10
3
This kit includes all screws, nuts and heat stakes to build a Stealthburner + the Clockwork 2 extruder based on the current StealthBurner manual release.
Also included are the inserts and screws for the recently added ADXL mount.
Important: Because Stealthburner has no BOM yet, we include at least one spare screw or nut. You will have leftovers!
Note that the M3x6 FHCS screws are not V2A but nickel plated steel, but that part isn't visible anyways.
Contents:M3x50 SHCS3M3x40 SHCS2M3x30 SHCS3M3x25 SHCS7M3x20 SHCS2M3x16 SHCS6M3x12 SHCS7M3x8 SHCS9M3x6 BHCS2M3x6 FHCS4M3 Hexnut3M3 Washer2M3 Brass heat stakes - M3x5x4 282x10mm self-tapping screw3

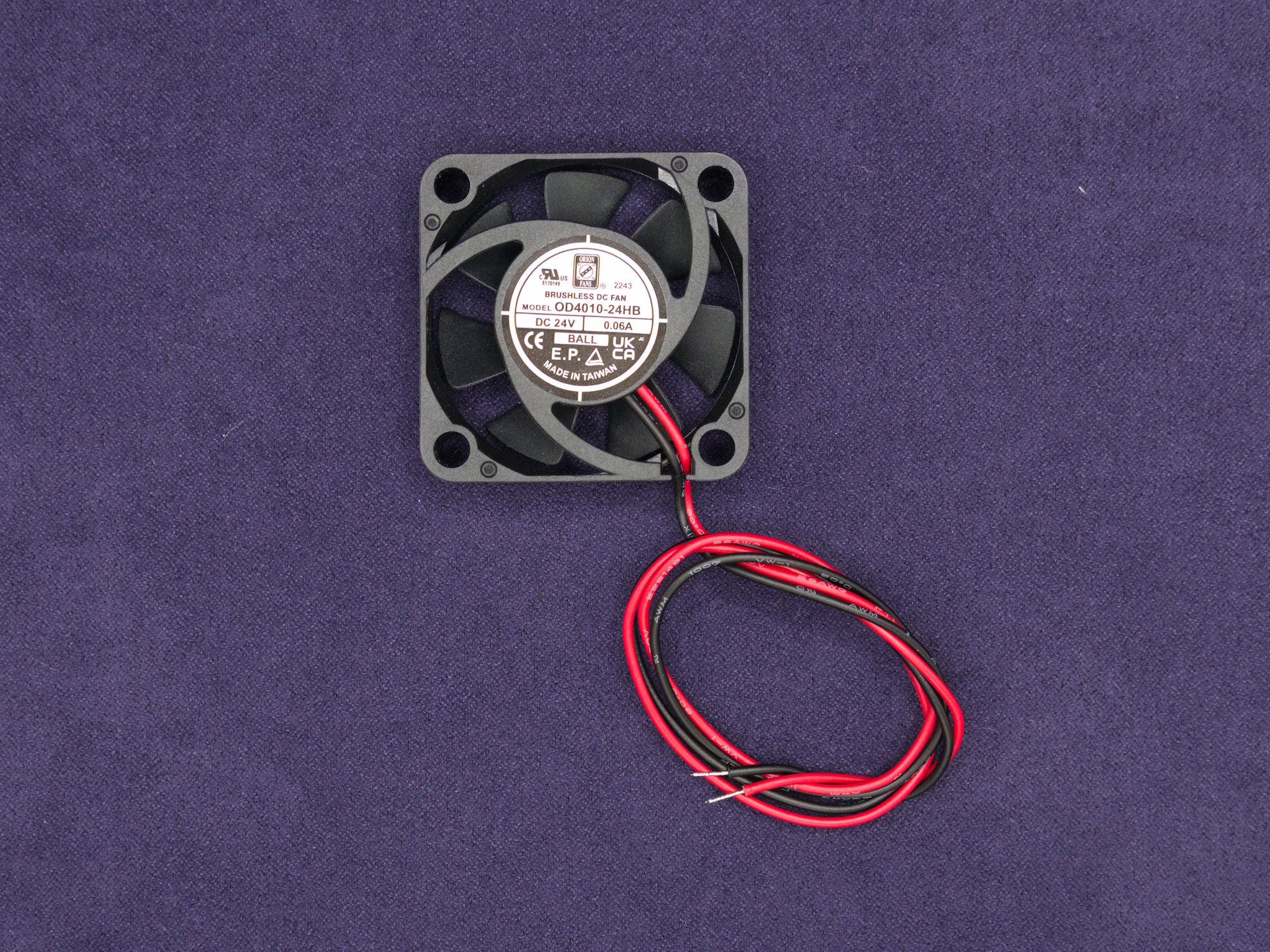

Orion OD4010-24HB, suitable as StealthBurner Hotend FanEvery fan is padded with some bubble wrap for additional protection during shipping.Technical data:Operational Voltage (nominal)24VRotational Speed8000 RPMAir Flow0.263 m³/min (9.3cfm, 15.8m³/h)Static Pressure0.20 in H2ONoise Level33.4dBCurrent60mA
Gdstime 5015 Blower Fan, very well suited for the Stealthburner. Model Number GDB5015.
Dual Ball Bearing, 24V, 100mA, 6000 RPM, 5.36 cfm, 38.7dB(a), 1.21 InH2O

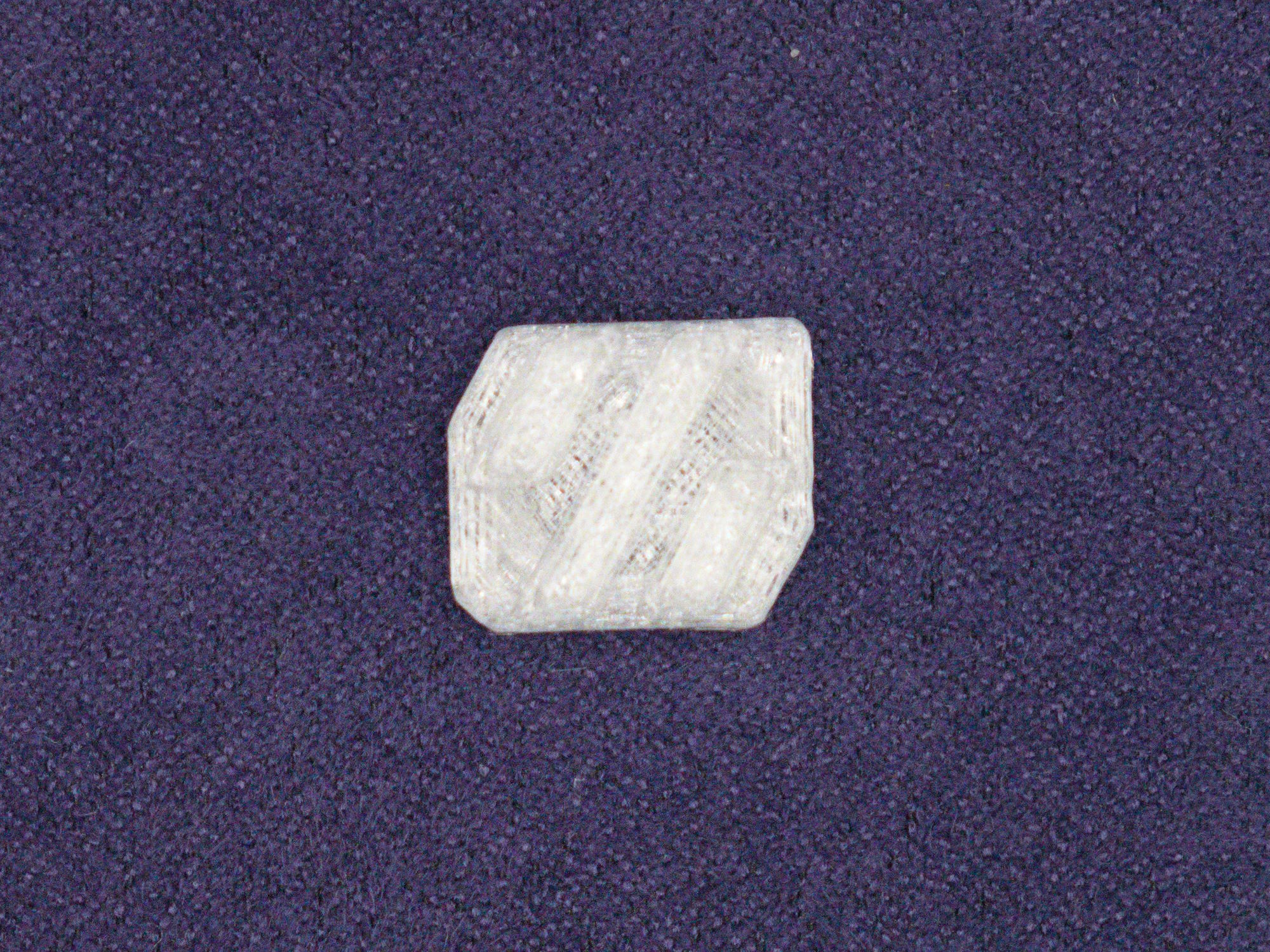

The transparent printed part [c]_stealthburner_LED_diffuser.stl for the Stealthburner, printed in transparent PETG (which is the only exception when you should use PETG in your Voron ever!). We include 2 pieces because print defects are pretty hard to spot.

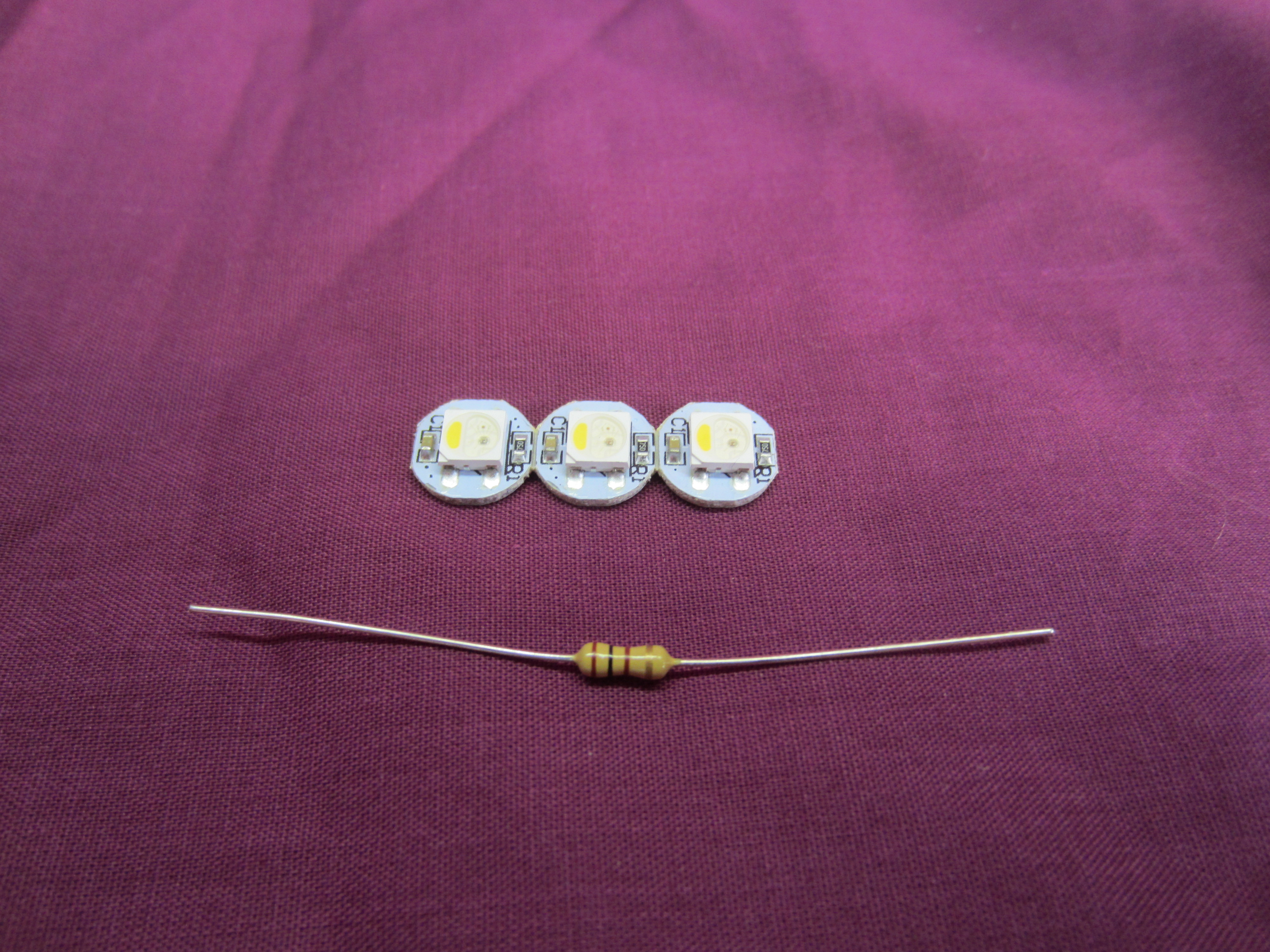

3 pieces SK6812 neutral white for use in the Stealthburner, including a 100 Ohm resistor to avoid signal reflections (see below). The SK6812 has red, green and blue LEDs as well as a dedicated white LED to achieve a pure white color without a blue tint. Please check the comparison pictures.
The color_order for Klipper needs to be GRBW.
Connect them to your Neopixel/RGB-Port of your printer mainboard - make sure you have a current mainboard like Fysetc Spider or SKR 1.4/Octopus/Octopus Pro by Bigtreetech.
If you already used the Neopixel/RGB-Port of your printer mainboard - no problem! You can connect DOUT of your existing strip to DIN of these LEDs. You just have to ensure that you have the same LED type - if your existing strip has RGB Neopixels, use WS2812B. If your existing strip has RGBW Neopixels, use SK6812.
Important! The data signal can be degraded if you run it over a long wire (signal reflections on transmission lines). If your LEDs don't show the desired colors or switch colors at random please try a very short cable to the mainboard first to ensure your wiring is correct. Then put the 100-120 Ohm resistor in-line with your DIN wire as close to the mainboard: DIN Mainboard -> 100-120 Ohm resistor -> long wire -> Neopixel DIN.
This screw kit contains all screws, nuts and heat stakes needed to build a Stealthburner according to the manual. You continue to use your existing Clockwork or Galileo extruder. Also included are the inserts and screws for the recently added ADXL mount.
Important: Because Stealthburner has no BOM yet, we include at least one spare screw or nut. You will have leftovers! The picture doesn't show the current kit contents, we'll update the picture soon!
Contents:M3x50 SHCS3M3x25 SHCS5M3x16 SHCS3M3x12 SHCS5M3x6 FHCS3M3 Brass heat stakes - M3x5x4 6Self-tapping Screw 2x103
