This is a PCB made for Armchair Engineering's Xol Toolhead, featuring:
One hotend cooling fan JST-XH connectors
Two part cooling fan JST-XH connectors
One heater Micro-Fit connector
One thermistor Micro-Fit connector
One Neopixel JST-XH connector
Two auxiliary JST-XH connectors
One extruder motor connector
Selectable fan voltage (5V, Alt, 24V)
Integrated mount for carriage screw
This PCB is not pre-soldered, you need to solder it yourself.

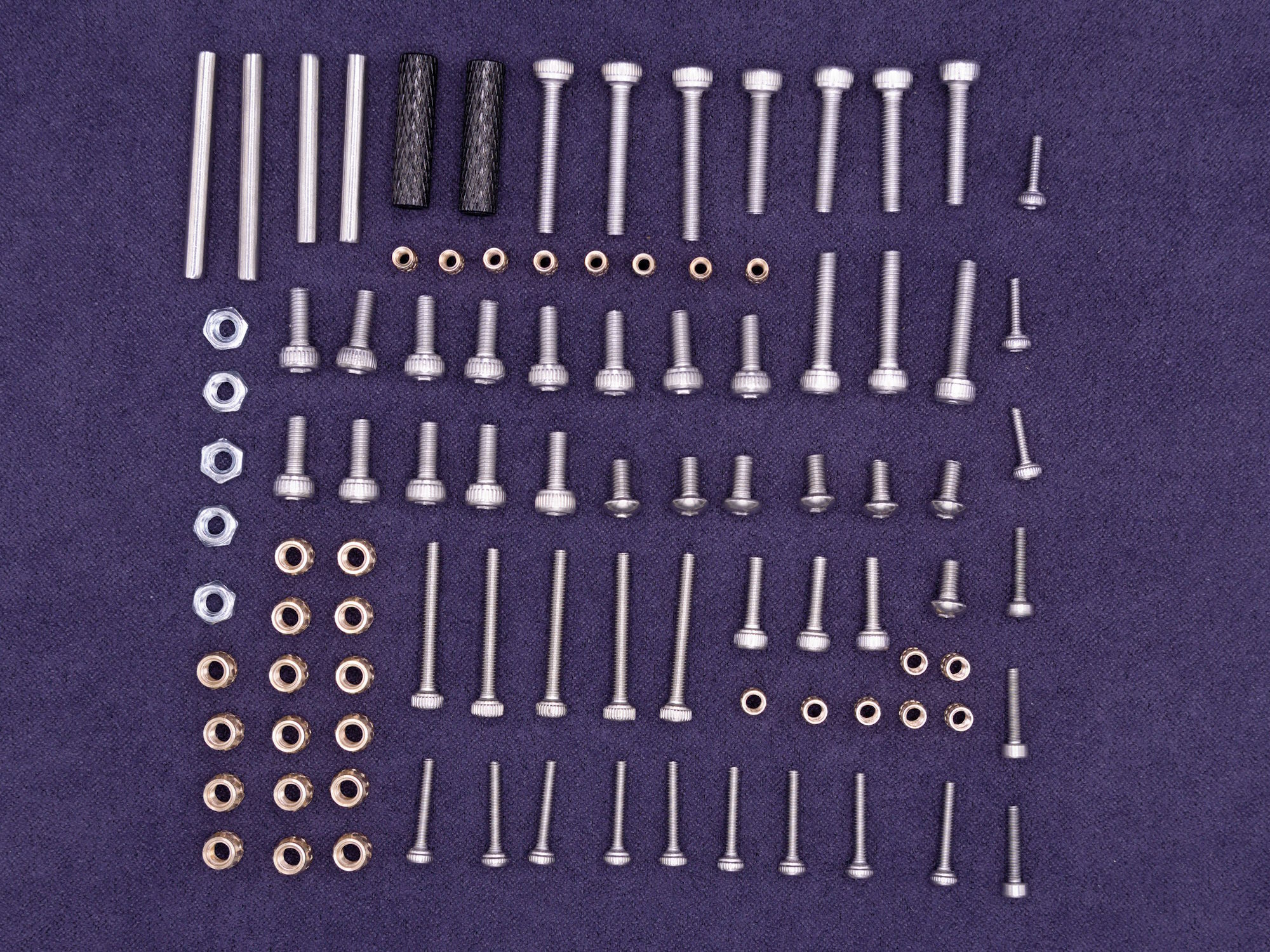

Xol Hardware Kit (for Update 2024-06-19)
Includes carriage parts, toolhead mounting hardware and optional hardware. Includes some spare screws and inserts. Note that the screws to mount the extruder are not included, as these vary depending on the specific extruder you use.
The product photo shows the original Xol Kit contents, we try to update the kits as the project progresses.
Cable Tie 1.8mm wide
4
Heatset Insert M3x5x4
12
M2.5x08 SHCS
10
M2.5x16 SHCS
6
M2x10 self-tapping screws
4
M3 DIN9021 Washer
4
M3 Nut
9
M3x06 BHCS
4
M3x08 SHCS
17
M3x16 SHCS
8
M3x20 SHCS
4
M3x20 Standoff
2
M3x30 Pin
2
M4 Metal Tube
2
GitHub Repository
Note that due to supply chain shortages we sometimes ship the BFB0405HHA-AF00 instead. The replacement specifications are identical apart from having an additional tachometer output. You can simply cut the third wire and not use it.
Operational Voltage
5V
Rated Current
160mA
Rated Speed
8500 RPM +-15%
Air Flow
3.0cfm (5.1m³/h, 0.085m³/min)
Static Pressure
0.564 inH2O (14.33 mmH2O)
Acoustic Noise
34.5 dB(A)
Step-Down-Converter to allow operation of 12V devices on a 24V rail.
Technical data:
Input Voltage: 24V (min 15V max 36V)
Output Voltage: 12V
Operating ambient temperature range: -40°C to +85°C
Output Current (max): 500mA
Relevant config options for Klipper:
tachometer_pin: # Set to the pin you like to use. Make sure it has either a hardware or software pullup
tachometer_ppr: 2
tachometer_poll_interval: 0.0009
Technical data:
Operational Voltage
5V
Rated Current
120mA
Rated Speed
15000 RPM +-15%
Air Flow
4.31cfm (7.32m³/h, 0.122m³/min)
Static Pressure
0.32 inH2O (8.13 mmH2O)
Acoustic Noise
31 dB(A)
1N4148 diode is included.
Operational Voltage
12V
Rated Current
80mA
Rated Speed
8500 RPM +-15%
Air Flow
3.0cfm (5.1m³/h, 0.085m³/min)
Static Pressure
0.564 inH2O (14.33 mmH2O)
Acoustic Noise
34.5 dB(A)
Note: photo shows the -A117 variant with 60mm cable, the -A variant we deliver is with ~150mm cable
