The IWISS IWS-2820M is one of the recommended tools to crimp JST XH, PH, MicroFit 3.0 and many other common connectors used in your Voron build.
Suggested crimping technique:
Crimp strands
Slightly pull on the wire to ensure proper crimp
Crimp insulation
Some common die sizes:
Type
Strand
Insulation
MicroFit 3.0 Crimps 24-20AWG
1.6mm
1.9mm
JST XH
1.6mm
1.6mm
JST PH
1.3mm
1.6mm
Screw Kit for the Voron Tap, including 4x N52 magnets.
Note: We add at least one screw, nut, washer or insert per BOM line so that you don't need to worry if one drops on the floor.
Bill of Materials (spares indicated by (+1)):
Qty
Part
11 (+1)
Heatset Insert M3x5x4
1 (+1)
M3 Nut
6 (+1)
M3 Washer
2 (+1)
M3x20 SHCS, Steel 8.8 Black
2 (+1)
M3x16 SHCS, Steel 8.8 Black
1 (+1)
M3x12 SHCS, Steel 8.8 Black
3 (+1)
M3x08 SHCS, Steel 8.8 Black
1 (+1)
M3x06 SHCS, Steel 8.8 Black
2 (+1)
M3x06 FHCS, Steel 8.8 Black
2 (+1)
M3x10 BHCS, Steel 8.8 Black
10 (+1)
M3x06 BHCS, Steel 8.8 Black
2
M3x50 BHCS, Steel 8.8 Black, fully threaded
4
N52 Magnets, 6x3mm
Screw Kit for the Voron Tap, including 4x N52 magnets and updated for the latest Tap R8.
Note: The M3x6 FHCS screws are NOT V2A but zinc coated steel, because they need to be magnetic.
Note: We add at least one screw, nut, washer or insert per BOM line so that you don't need to worry if one drops on the floor (except the M3x50 ones, which should be large enough).
Bill of Materials (spares indicated by (+1)):
Qty
Part
11 (+1)
Heatset Insert M3x5x4
1 (+1)
M3 Nut
6 (+1)
M3 Washer
2 (+1)
M3x20 SHCS, V2A
2 (+1)
M3x16 SHCS, V2A
1 (+1)
M3x12 SHCS, V2A
3 (+1)
M3x08 SHCS, V2A
1 (+1)
M3x06 SHCS, V2A
2 (+1)
M3x06 FHCS, Zinc Coated, Ferromagnetic
2 (+1)
M3x10 BHCS, V2A
10 (+1)
M3x06 BHCS, V2A
2
M3x50 BHCS, V2A, fully threaded
4
N52 Magnets, 6x3mm
This screw kit contains all screws, nuts and heat stakes needed to build a Stealthburner according to the manual. You continue to use your existing Clockwork or Galileo extruder. Also included are the inserts and screws for the recently added ADXL mount.
Important: We include at least one spare screw or nut. You will have leftovers!
Note that the M3x6 FHCS screws are not V2A but nickel plated steel, but that part isn't visible anyways.
Contents:
M3x50 SHCS
3
M3x25 SHCS
5
M3x16 SHCS
3
M3x12 SHCS
5
M3x6 FHCS
3
M3 Brass heat stakes - M3x5x4
6
Self-tapping Screw 2x10
3

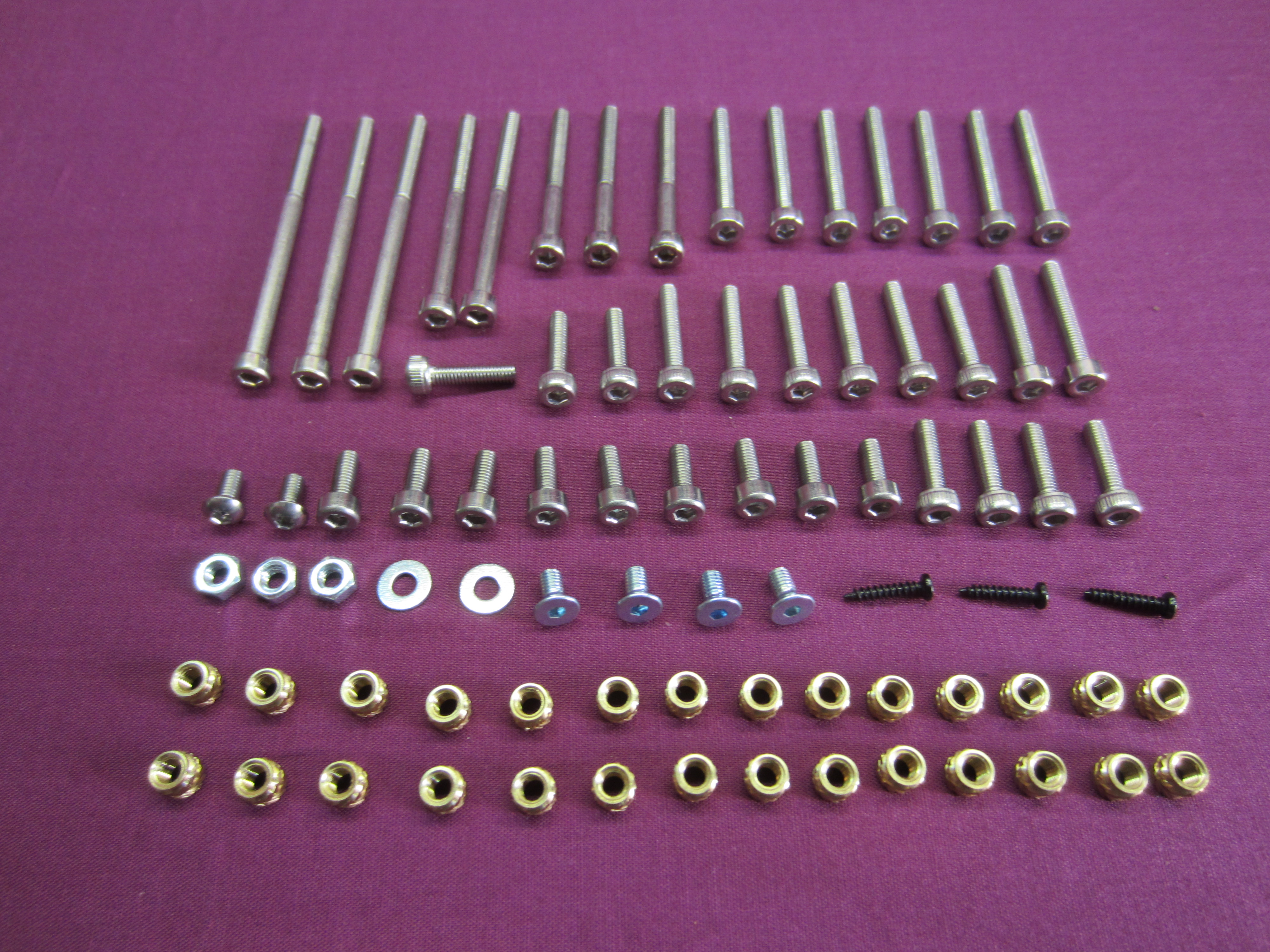

This kit includes all screws, nuts and heat stakes to build a Stealthburner + the Clockwork 2 extruder based on the current StealthBurner manual release.
Also included are the inserts and screws for the recently added ADXL mount.
Important: Because Stealthburner has no BOM yet, we include at least one spare screw or nut. You will have leftovers!
Note that the M3x6 FHCS screws are not V2A but nickel plated steel, but that part isn't visible anyways.
Contents:M3x50 SHCS3M3x40 SHCS2M3x30 SHCS3M3x25 SHCS7M3x20 SHCS2M3x16 SHCS6M3x12 SHCS7M3x8 SHCS9M3x6 BHCS2M3x6 FHCS4M3 Hexnut3M3 Washer2M3 Brass heat stakes - M3x5x4 282x10mm self-tapping screw3
Sunon MF50151VX-B00U-A99, 12V, 9.18m³/h (5.4cfm), 6000 RPM, 42.2dB(A), 170mA, 0.97inH2O (24.64 mm H2O).
Note: Sunon A99 fans aren't PWM controllable in many cases - if in doubt, consider them as "on" / "off" only.
Can be used for Nevermore Micro v5 or for bed fan projects.
This screw kit contains all screws, nuts and heat stakes needed to build a Stealthburner according to the manual. You continue to use your existing Clockwork or Galileo extruder. Also included are the inserts and screws for the recently added ADXL mount.
Important: Because Stealthburner has no BOM yet, we include at least one spare screw or nut. You will have leftovers! The picture doesn't show the current kit contents, we'll update the picture soon!
Contents:M3x50 SHCS3M3x25 SHCS5M3x16 SHCS3M3x12 SHCS5M3x6 FHCS3M3 Brass heat stakes - M3x5x4 6Self-tapping Screw 2x103
