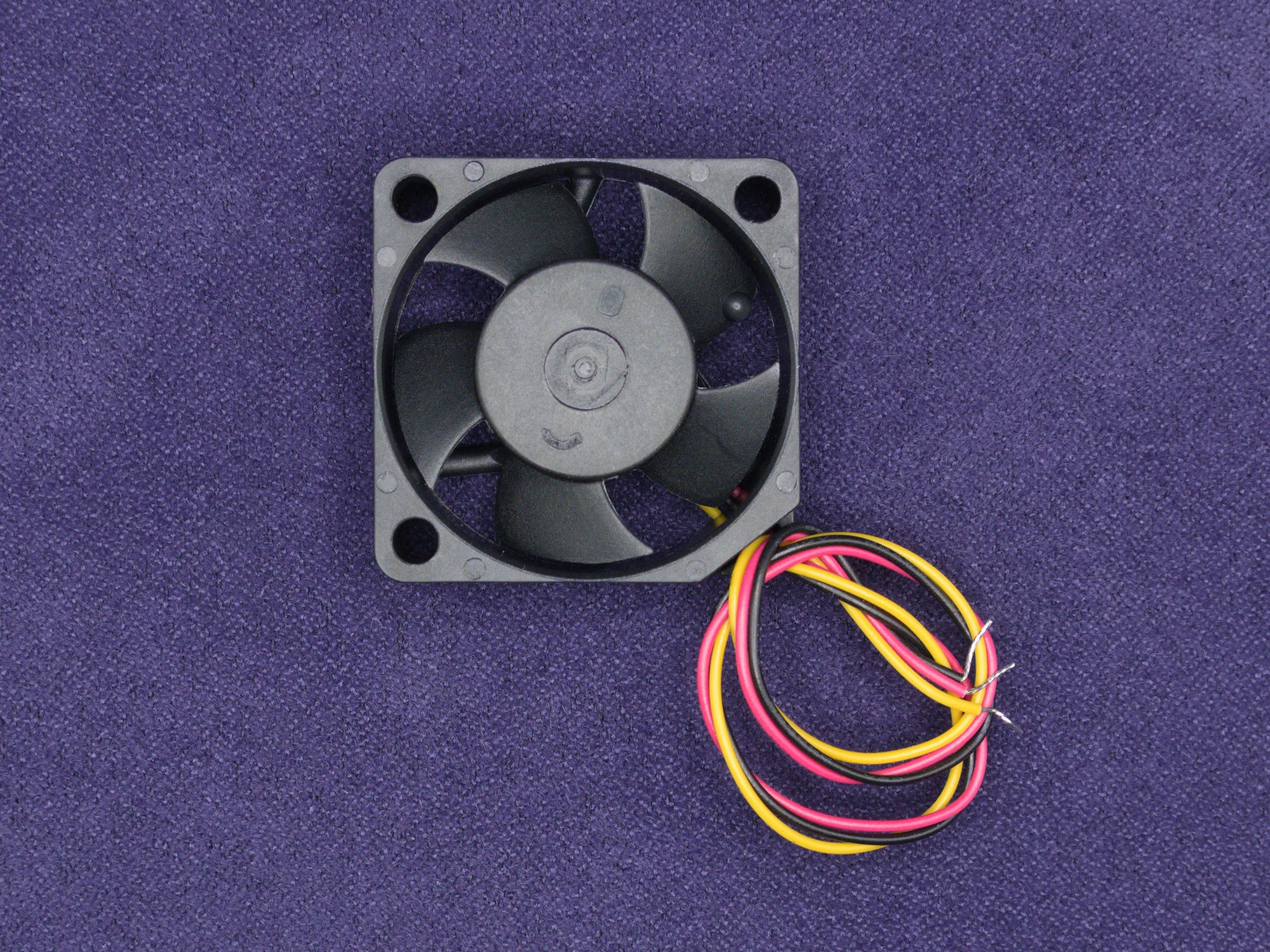

Sunon MF30101V1-1000U-G99
Product number:
RT10189
Product information "Sunon MF30101V1-1000U-G99"
Sunon MF30101V1-1000U-G99 with tachometer output.
Comes with an 1N4148 diode and instructions for the tachometer open collector output.
Every fan is padded with some bubble wrap for additional protection during shipping.
The small blobs on the fan are for imbalance compensation and are not a manufacturing defect!
Technical data:
| Operational Voltage (nominal) | 12V |
| Rotational Speed | 11500 RPM |
| Air Flow | 0.16 m³/min (5.5cfm, 9.6m³/h) |
| Static Pressure | 0.25 in H2O |
| Noise Level | 23.0dB |
| Current | 0.55mA |
